Ausdeck insulated roofing is an innovative 3-in-1 roofing system that provides a roof, insulation, and pre-finished ceiling in one modular product. With superior spanning capabilities and thermal properties, it is ideal for residential, industrial and commercial projects. Not only is it lightweight and fast to install, but it’s also cost-effective, requiring fewer support beams, no additional ceiling layers and fewer trades compared to other roofing alternatives. Insulated roofing is a versatile building material that can be used in various applications, from transportable buildings, educational and mining facilities, to outdoor patios, carports, awnings and walkways. Available in a variety of profiles, thicknesses, and colours, Ausdeck insulated roofing provides superb design flexibility to meet your project requirements.
Spans of up to 9.6m* require less support beam to maximise views and the comfort of wide, open spaces. *Using 150mm Panel, N1 Wind Cat
Enjoy year-round comfort outdoors with a roof that’s cooler in summer, warmer in winter, and quieter in heavy rain and storms.

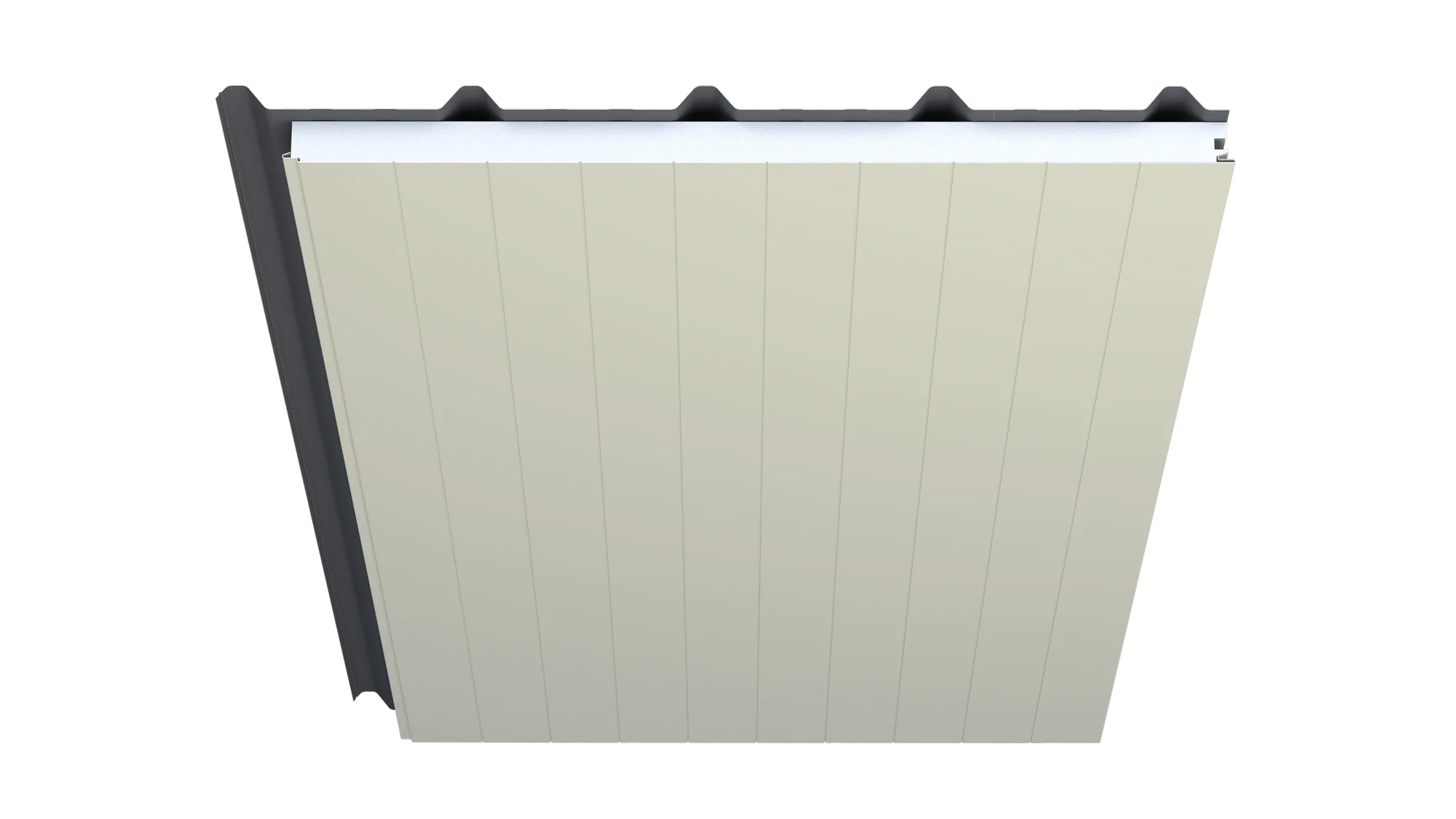

A streamlined, interlocking ceiling panel system that elevates your outdoor area with a touch of class.
Choose from a palette of 18 stylish colours to perfectly complement your home.
Our weather-tough, 5-layer protection system engineered to protect your investment in coastal and harsh environments.
Industry-leading insulated roofing manufactured in house from high quality materials and backed by 15-year warranty for genuine peace of mind.* *Marine Plus includes a site-specific warranty.
| Panel Size (mm) | 50 | 75 | 100 | 125 | 150 |
| Ribbed Overall Thickness (mm) | 78 | 103 | 128 | 153 | 178 |
| Corrugated Overall Thickness (mm) | 66 | 91 | 116 | 141 | 166 |
| Panel Coverage (mm) | 1000 | ||||
| Min. Length (m) | Cut to length. 1.8 | ||||
| Roof Profile and Material | Ribbed or Corrugated: 0.42 / AZ150 G550 | ||||
| Ceiling Profile and Material | Flat: 0.60 / AZ150 G300 | ||||
| Roof and Ceiling Finish | Roof: 25% Gloss, Ceiling: 25% Gloss | ||||
| Paint System | AS/NZS 2728 and AS 1397 | ||||
| Core Material | SL Grade Polystyrene, Fire-Retardant | ||||
| Adhesive Thermosetting | Two-part polyurethane CFC free | ||||
| Ribbed | |||||
| R Value 8oC m2KW | 1.61 | 2.26 | 2.66 | 3.25 | 3.94 |
| R Value 20oC m2KW | 1.59 | 2.22 | 2.59 | 3.17 | 3.75 |
| Panel Weight (kg/m2) | 10.58 | 10.94 | 11.37 | 11.8 | 12.23 |
| Min. Roof Pitch (°) | 2° (35mm / metre) | ||||
| Corrugated | |||||
| R Value 8oC m2KW | 1.61 | 2.26 | 2.66 | 3.25 | 3.94 |
| R Value 20oC m2KW | 1.59 | 2.22 | 2.59 | 3.17 | 3.75 |
| Panel Weight (kg/m2) | 10.85 | 11.21 | 11.65 | 12.08 | 12.51 |
| Min. Roof Pitch (°) | 5° (87mm / metre) | ||||
Notes: Refer to the Engineering and Construction Manual for more information.
